Home > Overmolded Connector Cable Harnesses

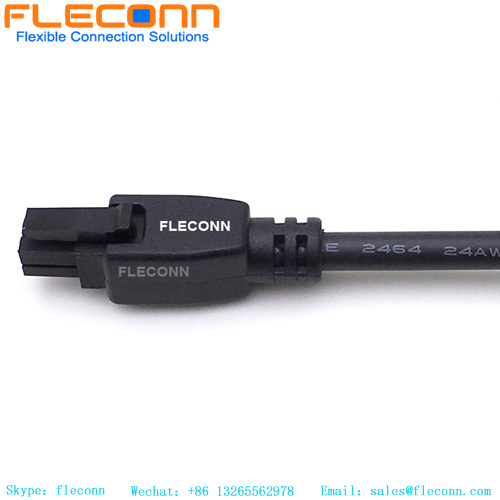

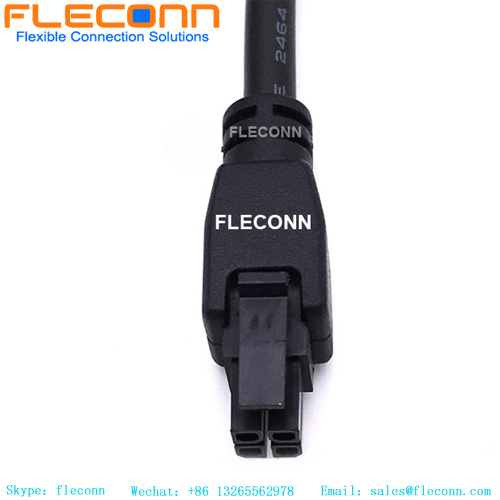

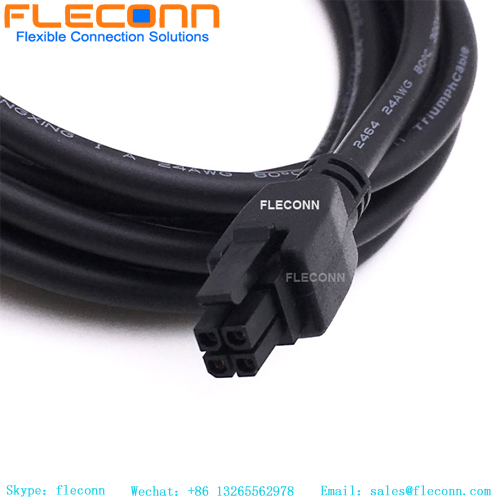

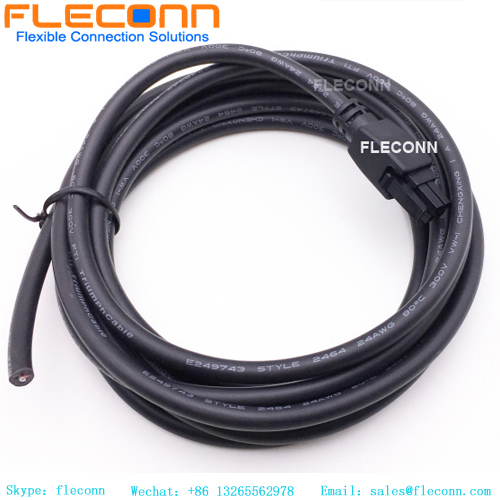

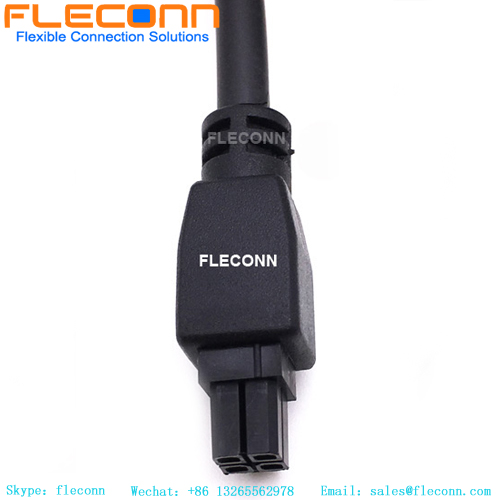

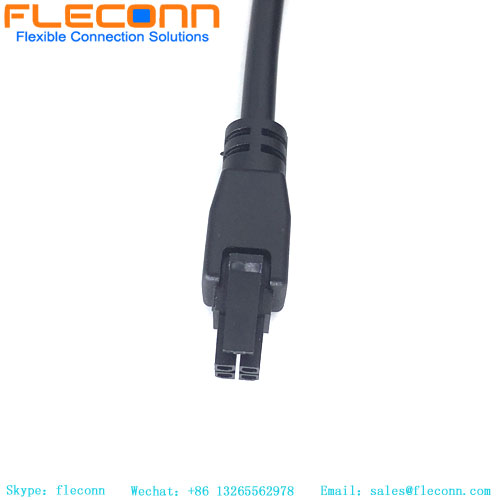

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Description Review

Description

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness Product Description

FLECONN can custom made overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness parameters

Cable: -25℃~80℃ PVC flexible

Process: Crimping, overmoulding

Certificate: CE, RoHS

Quality: 100% Inspection

Wire: stranded copper wire with PVC insulation

Application: Home Appliance, Automobile, Motorcycle, Industry automation

Detail description for Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Prouduct Name	Molex Micro-Fit 3.0 Series 43025-0400 4Pin Connector Overmolded Cable Assemblies
Equivalent to Molex Part No.	2451320405, 2451320410, 2451320420, 2451320430, 2451320450
Applications	Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters	1. Connector housing: 43025-0400 Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black
	2. Crimp terminal: 43030-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel. 430300004 26-30 AWG, 430300038 18 AWG
	3. Connector type: rectangular
	4. Connector Feature: latch lock
	5. Wire: UL2464 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
	6. Cable jacket: black PVC jacket
	7. Shielded: un-shielded / braided shielded
	8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
	9. Cable style: UL2464 Round cable/ UL2468 Parallel cable
	10. Color: Black, white, blue, green etc. MOQ 3000m except black.
	11. Wiring diagrm: defined by customers
	12. Inner molding material: LDPE resin
	13. Outer molding material: 45P PVC resin
Environment temperature:	Ambient temperature for operation: -25…80℃
Waterproof Rating:	IP4X
Certificate:	CE, RoHS, UL(connector, cable)
Package:	**pcs/bind or 1pcs/PE bag

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness
