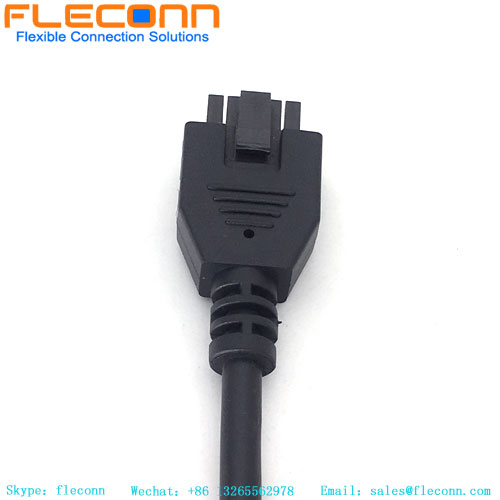

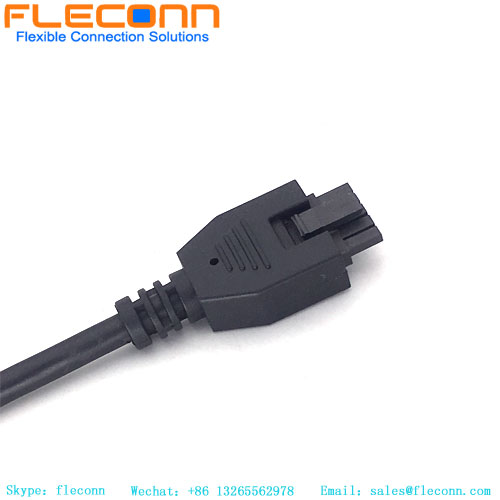

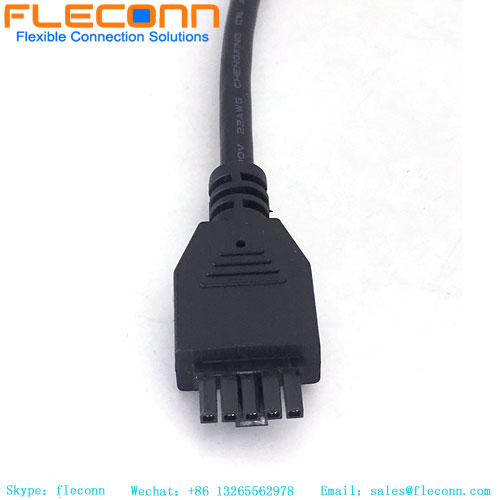

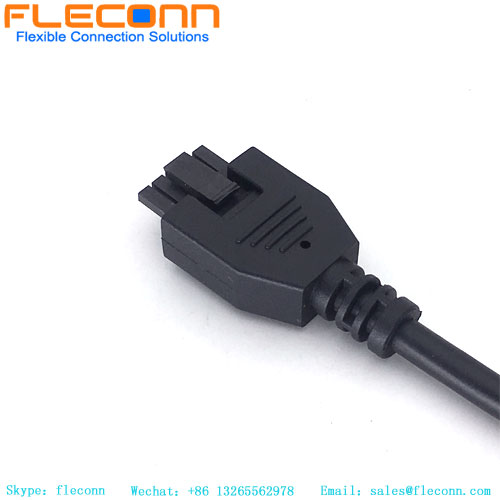

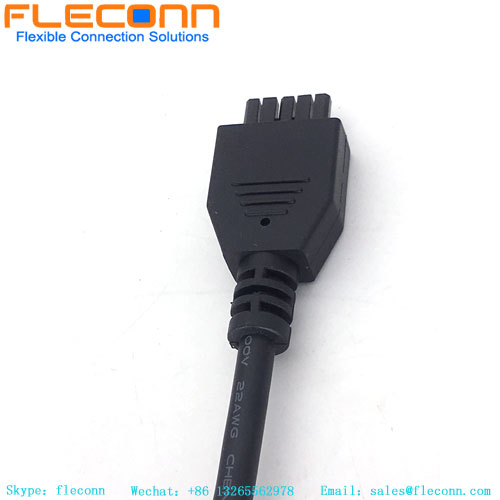

Molex Cable Assembly Custom Micro-Fit 43025-0500 Overmolded Wire Harness

Molex Cable Assembly Custom Micro-Fit 43025-0500 Overmolded Wire Harness

Molex Cable Assembly Custom Micro-Fit 43025-0500 Overmolded Wire Harness

Molex Cable Assembly Custom Micro-Fit 43025-0500 Overmolded Wire Harness

Molex Cable Assembly Custom Micro-Fit 43025-0500 Overmolded Wire Harness

Molex Cable Assembly Custom Micro-Fit 43025-0500 Overmolded Wire Harness

Description Review

Description

Molex Cable Assembly Custom Micro-Fit 43025-0500 Overmolded Wire Harness Product Description

FLECONN can custom made overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Molex Cable Assembly Custom Micro-Fit 43025-0500 Overmolded Wire Harness parameters

Cable: -40℃~105℃ PVC flexible

Process: Crimping, PVC overmould

Certificate: CE, RoHSProduct Specifications

Quality: 100% Inspection

Wire: Shielded Cable with PVC sleeve

Application: Home Appliance, Automobile, Motorcycle, Industry control

Important process: Crimping, Soldering,outside molding

Detail description for Molex Cable Assembly Custom Micro-Fit 43025-0500 Overmolded Wire Harness

Prouduct Name	Molex Micro-Fit 3.0 Series 43025-0500 5Pin Connector Overmolded Cable Assemblies
Equivalent to Molex Part No.	2147700505, 2147700510, 2147700520, 2147700530,
Applications	Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters	1. Connector housing: 43025-0500 Micro-Fit 3.0 Receptacle Housing, Dual Row, 5 Circuits, UL 94V-0, Low-Halogen, Black
	2. Crimp terminal: 43030-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel. 430300004 26-30 AWG, 430300038 18 AWG
	3. Connector type: rectangular
	4. Connector Feature: latch lock
	5. Wire: UL2464 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
	6. Cable jacket: black PVC jacket
	7. Shielded: un-shielded / braided shielded
	8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
	9. Cable style: UL2464 Round cable/ UL2468 Parallel cable
	10. Color: Black, white, blue, green etc. MOQ 3000m except black.
	11. Wiring diagrm: defined by customers
	12. Inner molding material: LDPE resin
	13. Outer molding material: 45P PVC resin
Environment temperature:	Ambient temperature for operation: -25…80℃
Waterproof Rating:	IP4X
Certificate:	CE, RoHS, UL(connector, cable)
Package:	**pcs/bind or 1pcs/PE bag
