Molex 4.2mm Pitch 0039012100 10 Pin Connector Wire Harness
Molex 4.2mm Pitch 0039012100 10 Pin Connector Wire Harness Molex 4.2mm Pitch 0039012100 10 Pin Connector Wire Harness Molex 4.2mm Pitch 0039012100 10 Pin Connector Wire Harness Molex 4.2mm Pitch 0039012100 10 Pin Connector Wire Harness

Molex 4.2mm Pitch 0039012100 10 Pin Connector Wire Harness

Item No.: MX-4.2MM-10P-PCB-150MM
Product Name: Micro-Fit 4.2 Wire Harness
Connector Pitch：4.2MM
Connector : Molex 0039012100, 2/4/6/8/10/11/12/14/16/18/20/22/24 pin
Crimp Terminal: 39000038
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 4.20mm
Request Quote
Description Review
Description

Molex 4.2mm Pitch 0039012100 10 Pin Connector Wire Harness Description



FLECONN, as an overmolded cable assemblies and molded wire harness manufacturer, can custom 0039 series molex microfit 4.2 cable with micro-fit 4.2 connector for power transmision. There are 2 4 6 8 10 12 14 16 18 20 22 24 pin Molex Micro-Fit 4.2 Cable receptacle housing such as manufacturer part number 0039012100，0039012140，0039013103，0039013143 available.

Molex 10 Pin Connector Wire Harness ，0039012100，Male

Prouduct Name    Molex Micro-Fit 4.2 Series 0039012100 10 Pin Connector Cable Assemblies
Equivalent to Molex Part No.  0039012100
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 0039012100 Micro-Fit 4.2 Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen
2. Crimp terminal: 39000038 Micro-Fit 1.2 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1571 Round cable/ UL1007 Parallel cable
10. Wiring diagrm: defined by customers
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag

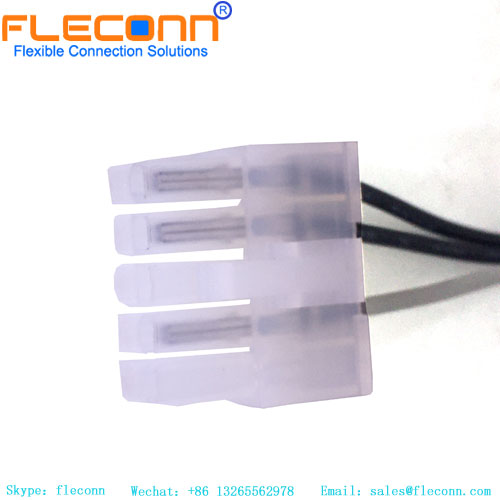

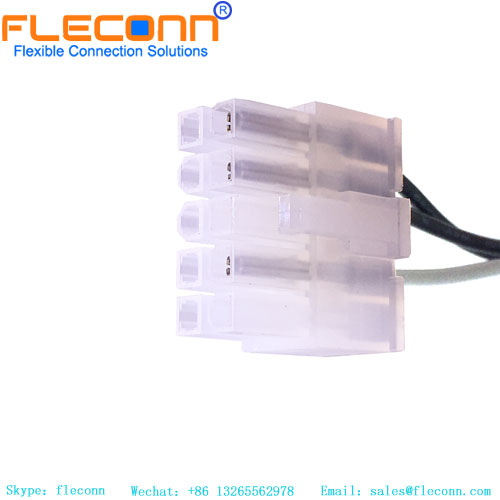

4.2mm Pitch Molex 0039012100 10 Pin Connector Wire Harness

4.2mm Pitch Molex 0039012100 10 Pin Connector Wire Harness

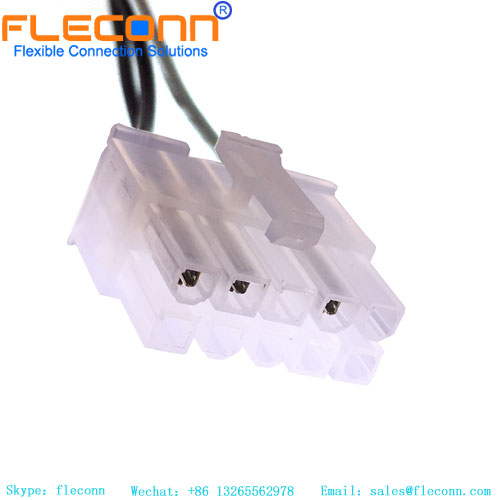

10 Pin 4.2mm Pitch Male Connector ，Molex 0039012100 Connector Cable

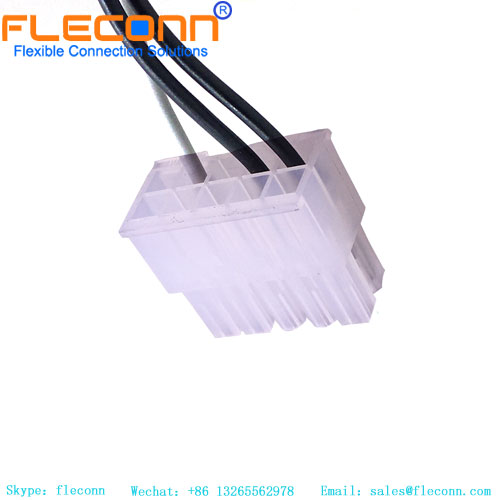

Molex 4.2mm Pitch 0039012100 10 Pin Connector Wire Harness

Molex 10 Pin Connector Wire Harness ，0039012100，Male

Molex Connector Wire Harness

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
