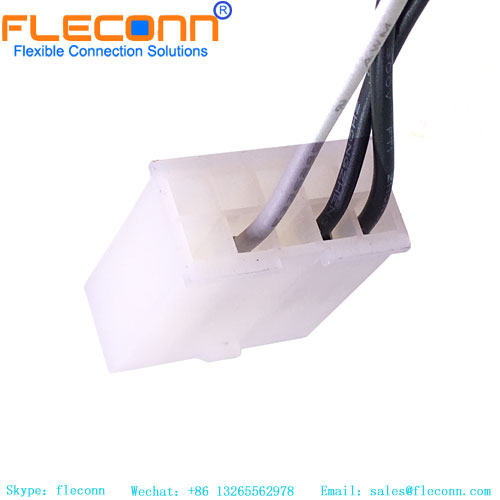

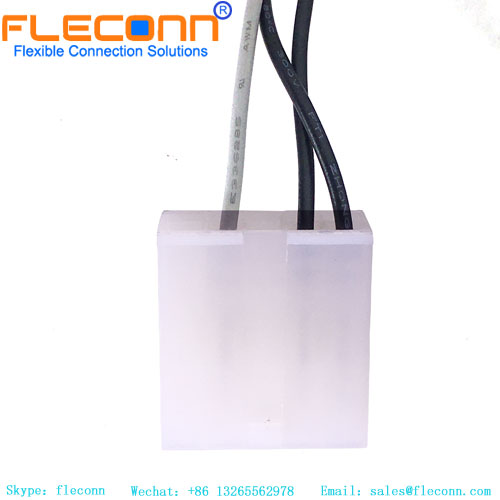

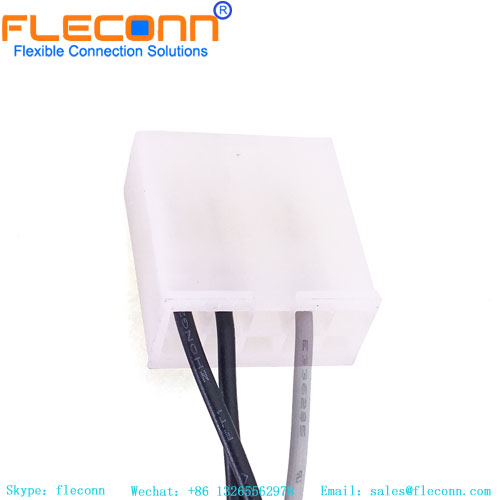

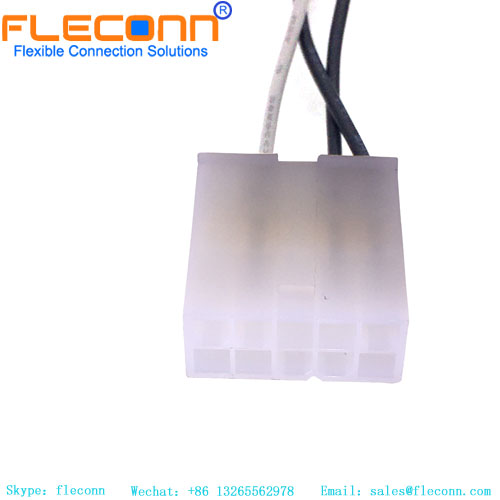

MOLEX 0039012103 10 Pin Connector Wire Harness, 4.2mm Pitch Wire to Board Connector
MOLEX 0039012103 10 Pin Connector Wire Harness, 4.2mm Pitch Wire to Board Connector MOLEX 0039012103 10 Pin Connector Wire Harness, 4.2mm Pitch Wire to Board Connector MOLEX 0039012103 10 Pin Connector Wire Harness, 4.2mm Pitch Wire to Board Connector MOLEX 0039012103 10 Pin Connector Wire Harness, 4.2mm Pitch Wire to Board Connector

MOLEX 0039012103 10 Pin Connector Wire Harness, 4.2mm Pitch Wire to Board Connector

Item No.: MX-4.2MM-10P-F-150MM
Product Name: Micro-Fit 4.2 Wire Harness
Connector Pitch：4.2MM
Connector : Molex 0039012103, 2/4/6/8/10/11/12/14/16/18/20/22/24 pin
Crimp Terminal: 39000040
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 4.20mm
Request Quote
Description Review
Description

4.2mm Pitch 0039013103 Male Connector Wire Harness Description



FLECONN, as an overmolded cable assemblies and molded wire harness manufacturer, can custom 0039 series molex microfit 4.2 cable with micro-fit 4.2 connector for power transmision. There are 2 4 6 8 10 12 14 16 18 20 22 24 pin Molex Micro-Fit 4.2 Cable receptacle housing such as manufacturer part number 0039012100，0039012140，0039013103，0039013143 available.

Custom Molex 4.2mm 10 Pin Connector Cable

Prouduct Name    Molex Micro-Fit 4.2 Series 0039012140 10 Pin Connector Cable Assemblies
Equivalent to Molex Part No.  0039012103
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 0039012103 Micro-Fit 4.2 Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen
2. Crimp terminal: 39000040 Micro-Fit 1.2 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1571 Round cable/ UL1007 Parallel cable
10. Wiring diagrm: defined by customers
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag


























Molex 4.2mm Pitch 0039013103 Male Connector Cable

4.2mm Pitch 0039013103 Male Connector Wire Harness

Custom Molex 4.2mm 10 Pin Connector Cable

Molex 4.2mm Pitch 0039013103 Male Connector Cable

MOLEX 0039012103 10 Pin Connector Wire Harness, 4.2mm Pitch Wire to Board Connector

Molex Connector Wire Harness

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
